Aligning Your Axes

At R For The Rest of Us we spend a lot of time creating bespoke parameterised reports for our clients. In these reports, we often use CSS to create polished documents and to control the placement of our images. We’ve written about this approach elsewhere.

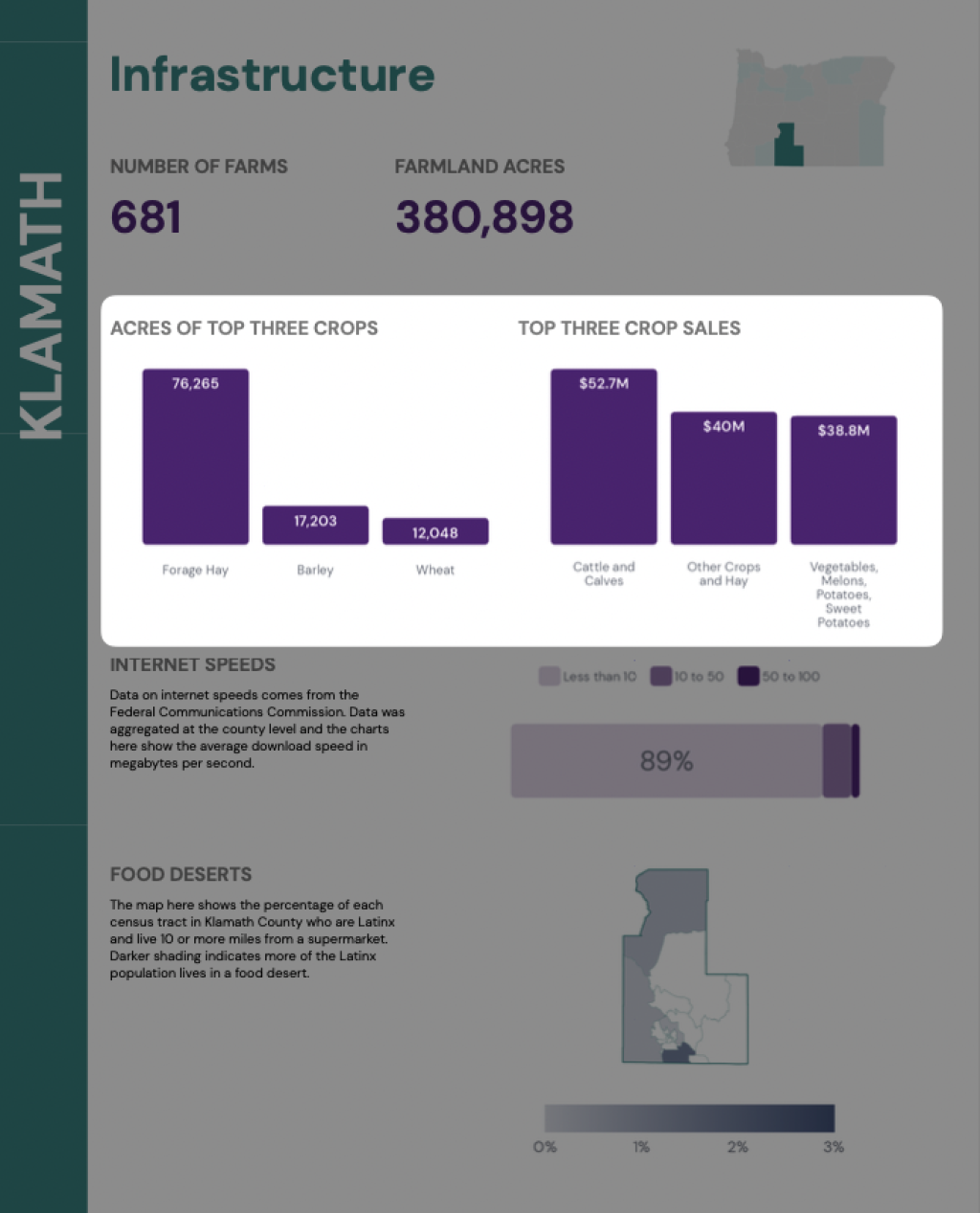

In a recent project creating a needs assessment report on farmworkers in Oregon, we needed a bit of extra problem solving to make sure that the X axes of two plots, placed side by side, were aligned horizontally.

The two plots we needed to align

This is the main thing we’ll demo in this post, but first, let’s backtrack a bit!

Dealing with long axis labels

Everyone likes a clearly labelled plot. And the axes are part of that! But when the data contains reeeeeeally long labels, things can get a bit unwieldy!

library(tidyverse)

penguin_plot <- palmerpenguins::penguins %>%
  mutate(long_island_name =
           case_when(island == "Torgersen" ~
                       "Torgersen, which is the only island with only one species. Fascinating!",
                     TRUE ~ paste(island))) %>%
  ggplot() +
  geom_bar(aes(x = long_island_name,
               fill = species)) +
  labs(x = "",
       y = "",
       title = "Number of penguins per species per island",
       fill = "Species") +
  colorblindr::scale_fill_OkabeIto() +
  theme_minimal()

penguin_plot

We’ve deliberately modified the name of Torgersen to make it very long, and yes, in this case, that’s a bit forced! But this isn’t too far from what happened in our real dataset, where the x-axis labels were lists of produce grown in different geographical area.

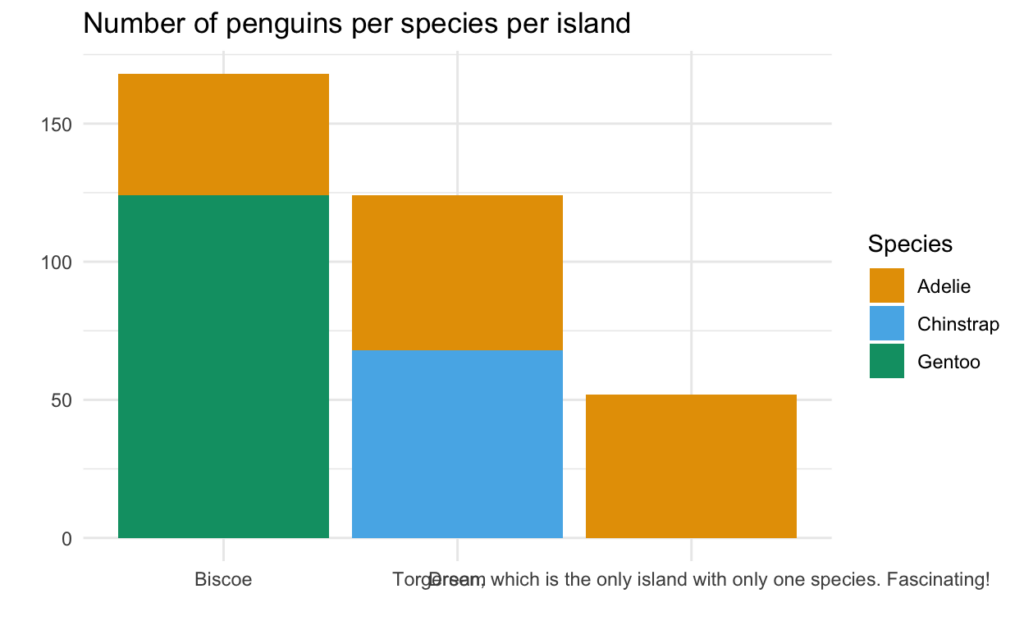

The x-axis is illegible because the long label overlaps with the others. There are several things we could do here:

  • Put all the labels at a slight angle so they all have room? Yes, but then the axis labels will take up a lot of space and squish the plot; plus our readers might get sore necks.
  • Use abbreviations for the long label? Sometimes this works, but in the case our our produce example, that was not an option; plus, it’s nice to make things as easy as possible for the readers and forcing them to look up what abbreviations stand for goes against that.
  • Manually add line breaks through our label so that it is split onto several lines and takes up less left-to-right space? Getting closer! But if our dataset is huge, that’s going to take a while; plus, isn’t part of the beauty of R that we can automate this type of task?
  • Use str_wrap to create a new column in our data which has line breaks? Closer still, but that creates a column that is only used for the purpose of plotting; can’t we do that on the fly?
  • Aha! Use str_wrap within the code that creates the labels? Bingo!

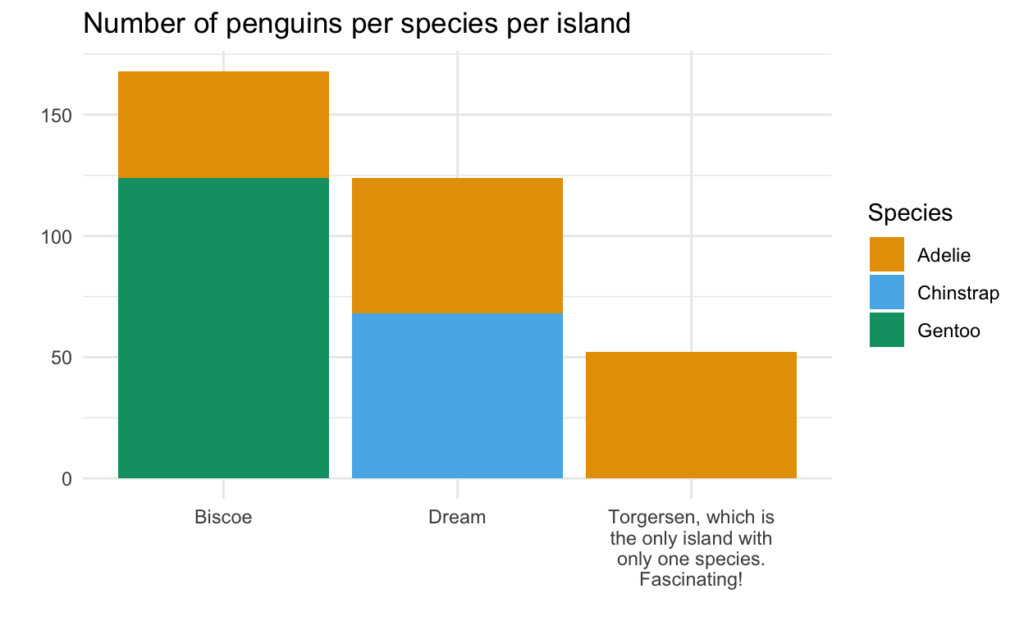

penguin_plot +
  scale_x_discrete(
    labels = function(x)
      str_wrap(x, width = 20)
  )

Much nicer! So now, let’s demo the next bit of the problem we need to solve.

Messy misaligned x-axes

Let’s say we want to compare how many Male and Female penguins there are per species on each island. We have three species, so let’s split the data and make three plots. For them to be comparable, we want to fix the y axis, so first we need to work out what the maximum number of penguins of any given species is on any given island.

palmerpenguins::penguins %>%
  # Count the number of penguins in each species on each island
  count(island, species) %>%
  # Just keep the maximum number
  filter(n == max(n)) %>%
  # Show just this number
  pull(n)
[1] 124

So, let’s fix the limits of the y axis to c(0, 125).

Let’s also create some variables we’ll use later on.

# Create a variable with all unique penguin species
penguin_species <- unique(palmerpenguins::penguins$species)

# Save a data frame with the long names
long_named_penguins <- palmerpenguins::penguins %>%
  mutate(long_island_name =
           case_when(island == "Torgersen" ~
                       "Torgersen, which is the only island with only one species. Fascinating!",
                     TRUE ~ paste(island)))

Ok, we’re ready to plot! In our various attempts to align our plots, we’ll take a consistent approach: 1) create a function to make the plot, 2) use the walk() function from the purrr package to create one plot for each unique species.

# Create a function to make our plot
penguin_plot_1 <- function(unique_species) {

  species_plot <- long_named_penguins %>%
    filter(species == unique_species) %>%
    ggplot() +
    geom_bar(aes(x = long_island_name,
                 fill = sex)) +
    labs(x = "",
         y = "",
         title = unique_species,
         fill = "Sex") +
    theme_minimal() +
    colorblindr::scale_fill_OkabeIto(na.value = "grey60") +
    ylim(c(0, 125)) +
    scale_x_discrete(
      labels = function(x)
        str_wrap(x, width = 20))

  print(species_plot)

}

# Use the walk function from the purrr package to create one plot for each unique species
walk(penguin_species, penguin_plot_1)

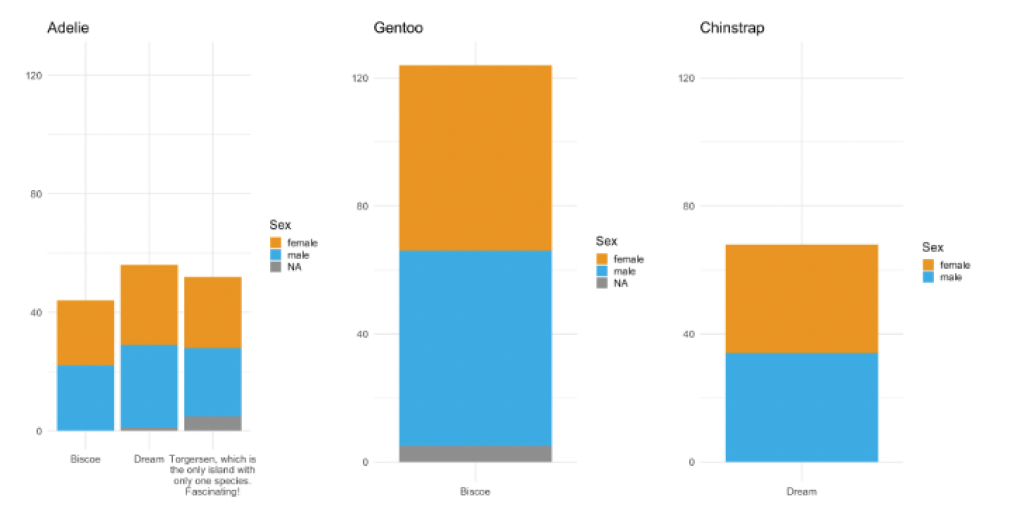

Here we have three plots side by side, illustrating the same concept, and we’ve fixed the y axis to make them comparable, but they are still difficult to compare because the x-axis for the first plot is higher than the x-axes in the other two plots. Why? Because the long name of the Torgersen island is pushing the plot upwards.

Wait, why not just use something like facet_grid()?

Good point! That would fix the problem in this case. But doing it this way gives us more flexibility and control in the overall document layout. Plus, this approach allows us to work across different datasets, without resorting to other plot combining packages such as {cowplot} or {patchwork}.

Aligning the axes by applying the same number of line breaks programmatically

What we need to do is figure out the maximum number of line breaks, and apply that number to the other two plots. To do this, we created a function that adds extra line breaks to shorter strings, so that they all wrap the same number of times as the longest string. We can override that by specifying a maximum number of lines, for extra flexibility in using this across different datasets.

A custom function to create the right number of extra line breaks

wrap_to_max <- function(text_to_wrap, text_width = 20, max_lines = NULL){

  tibble(text_to_wrap) %>%
    # Create a column where the text is wrapped
    mutate(wrapped_text = str_wrap(text_to_wrap, width = text_width)) %>%
    # Count the number of line breaks in the wrapped text
    mutate(line_count = str_count(wrapped_text, "\n")) %>% {
      # Add a column containing extra line breaks up to...
      if(is.null(max_lines))  {
        # ... the greatest number of line breaks
        mutate(., extra_breaks = strrep(x = "\n  ",
                                        times = (max(.$line_count) - .$line_count)))
      } else {
        # ... or the number of line breaks we've specified
        mutate(., extra_breaks = strrep(x = "\n  ",
                                        times = ((max_lines - 1) - .$line_count)))
      }
    } %>%
    # Add those extra line breaks onto the end our our strings
    unite("wrapped_to_max", wrapped_text, extra_breaks, sep = "") %>%
    # Return only the strings with added line breaks; the rest of the tibble
    # was just a handy way of manipulating the data!
    pull(wrapped_to_max)
}

Let’s try that with our modified island names.

long_named_penguins %>%
  pull(long_island_name) %>%
  wrap_to_max() %>%
  unique()
[1] "Torgersen, which is\nthe only island with\nonly one species.\nFascinating!"
[2] "Biscoe\n  \n  \n  "
[3] "Dream\n  \n  \n  "

We have extra line breaks for the shorter island names! The extra space after the \n is to avoid any artefacts in how the line breaks are rendered.

Applying that function within the plot code

The function we’ve written does the trick nicely; now let’s see if it fixes our problem.

penguin_plot_2 <- function(unique_species) {

  species_plot <- long_named_penguins %>%
    filter(species == unique_species) %>%
    ggplot() +
    geom_bar(aes(x = long_island_name,
                 fill = sex)) +
    labs(x = "",
         y = "",
         title = unique_species,
         fill = "Sex") +
    theme_minimal() +
    colorblindr::scale_fill_OkabeIto(na.value = "grey60") +
    ylim(c(0, 125)) +
    scale_x_discrete(
      labels = function(x)
        wrap_to_max(x))

  print(species_plot)

}

walk(penguin_species, penguin_plot_2)

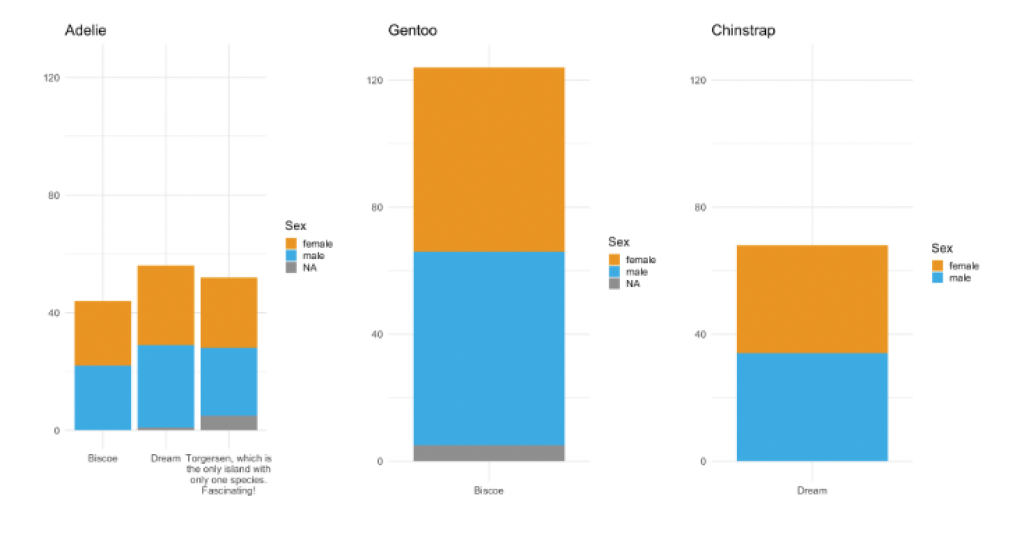

Why didn’t that work? Because the maximum number of lines to wrap is determined based on the subset of data we’re feeding into each plot! There are two solutions to this.

Wrap the text within the data

penguin_plot_3 <- function(unique_species) {

  species_plot <-
    long_named_penguins %>%
    mutate(wrapped_island_name = wrap_to_max(long_island_name)) %>%
    filter(species == unique_species) %>%
    ggplot() +
    geom_bar(aes(x = wrapped_island_name,
                 fill = sex)) +
    labs(x = "",
         y = "",
         title = unique_species,
         fill = "Sex") +
    theme_minimal() +
    colorblindr::scale_fill_OkabeIto(na.value = "grey60") +
    ylim(c(0, 125))

  print(species_plot)
}

walk(penguin_species, penguin_plot_3)

It works! But only if the starting point is a unique dataset. If we want to put plots side by side that come from different datasets, a better approach would be to work out the max number of lines and use the max_lines argument in the function we created.

Figure out the maximum number of lines needed across all plots, and apply that to each plot

We begin by calculating the maximum number of lines across all plots.

max_penguin_lines <- long_named_penguins %>%
  pull(long_island_name) %>%
  unique() %>%
  wrap_to_max() %>%
  str_count("\n") %>%
  max() + 1 # +1 because \n indicates a line break, and there is no \n on the last line!

max_penguin_lines
[1] 4

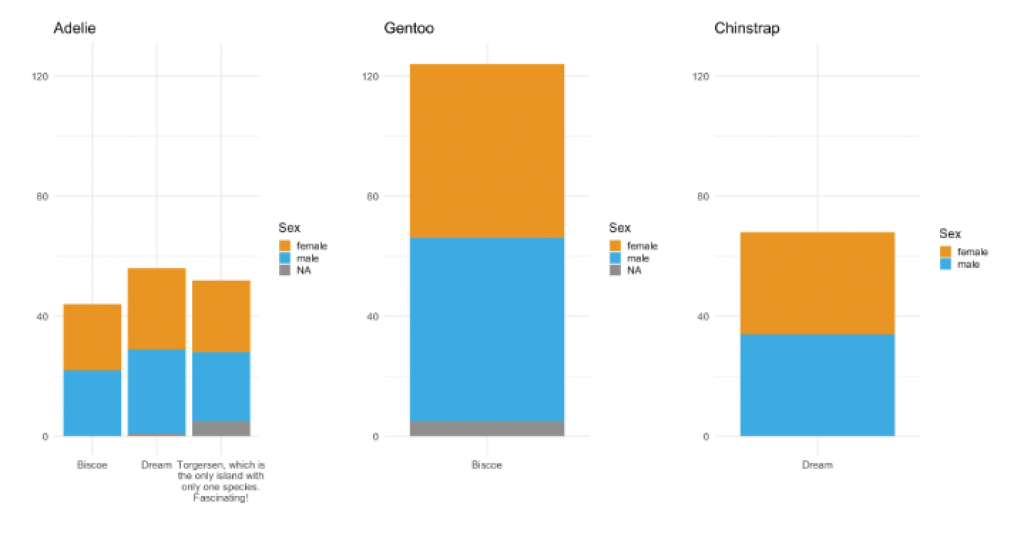

We then use the max_penguin_lines variable in our plotting function so that the plots align.

penguin_plot_4 <- function(unique_species) {
  species_plot <- long_named_penguins %>%
    filter(species == unique_species) %>%
    ggplot() +
    geom_bar(aes(x = long_island_name,
                 fill = sex)) +
    labs(x = "",
         y = "",
         title = unique_species,
         fill = "Sex") +
    theme_minimal() +
    colorblindr::scale_fill_OkabeIto(na.value = "grey60") +
    ylim(c(0, 125)) +
    scale_x_discrete(
      labels = function(x)
        wrap_to_max(x, max_lines = max_penguin_lines))

  print(species_plot)
}

walk(penguin_species, penguin_plot_4)

There we have it. Alignment problem solved in a way that is both flexible and quick, by creating just the right number of line breaks for the labels in our dataset(s)!
